Home / Products / Isolators / Isolators - Gate Drivers / ACPL-352J-000E

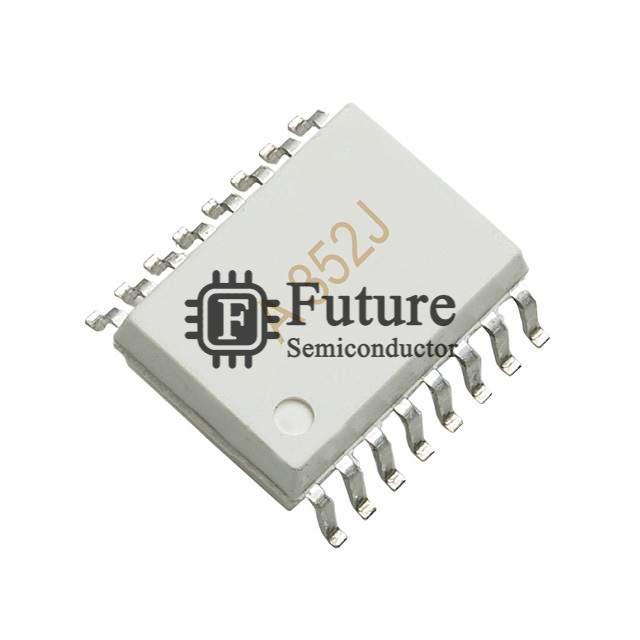

Broadcom Limited ACPL-352J-000E
- MFG Part Number
- ACPL-352J-000E
- Available Quantity
- 81150 Pieces
- Reference Price
- USD 5.352
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Broadcom Limited
- Brief Description
- - OPTOISO 5KV 1CH GATE DRIVER 16SO
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Isolators - Gate Drivers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ACPL-352J-000E.pdf
ACPL-352J-000E Specifications
| Manufacturer Part Number | ACPL-352J-000E |
|---|---|
| Future Part Number | FT-ACPL-352J-000E |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| ACPL-352J-000E Status (Lifecycle) | In Stock |
| Part Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 37ns, 30ns |
| Current - Output High, Low | 4.5A, 4.5A |
| Current - Peak Output | 5A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
| Approvals | CSA, IEC/EN/DIN, UR |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ACPL-352J-000E Weight | Contact Us |
| Replacement Part Number | ACPL-352J-000E-FT |
