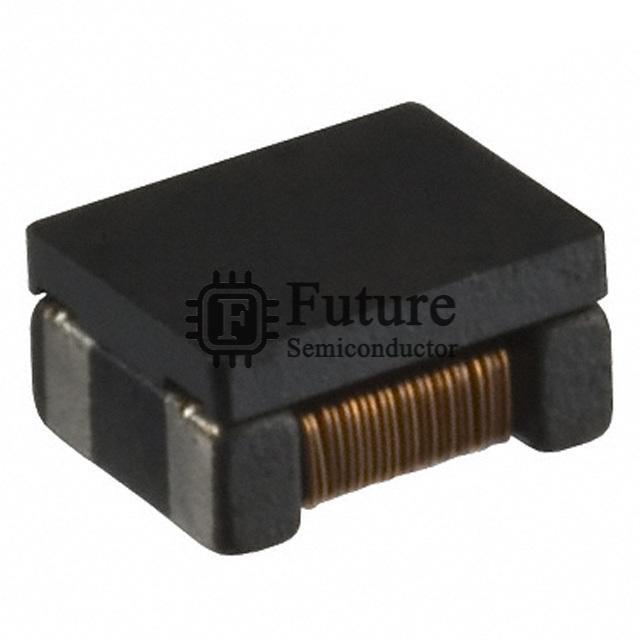

TDK Corporation ACM2520-451-2P-T002
- MFG Part Number
- ACM2520-451-2P-T002
- Available Quantity
- 44650 Pieces
- Reference Price
- USD 0.32
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- TDK Corporation
- Brief Description
- ACM CMC 350MA 2LN 450 OHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Common Mode Chokes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ACM2520-451-2P-T002.pdf
ACM2520-451-2P-T002 Specifications
| Manufacturer Part Number | ACM2520-451-2P-T002 |
|---|---|
| Future Part Number | FT-ACM2520-451-2P-T002 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | ACM |
| ACM2520-451-2P-T002 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 450 Ohms @ 100MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 350mA |
| DC Resistance (DCR) (Max) | 400 mOhm |
| Voltage Rating - DC | 20V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approvals | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ACM2520-451-2P-T002 Weight | Contact Us |
| Replacement Part Number | ACM2520-451-2P-T002-FT |
