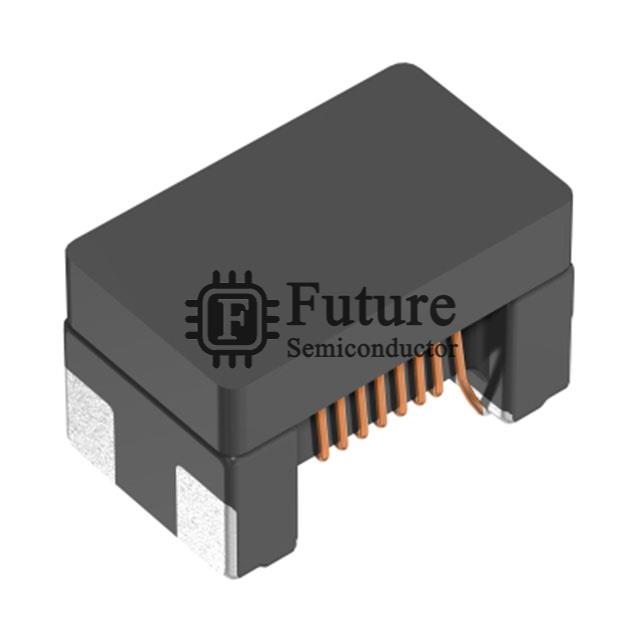

TDK Corporation ACM2012H-381-2P-T05

Name: ACM2012H-381-2P-T05
Brand: TDK Corporation
SKU: ACM2012H-381-2P-T05
Price: 0.18828 USD
Availability: InStock
Rating: 5.0 (593 reviews)

MFG Part Number: ACM2012H-381-2P-T05

Available Quantity: 13790 Pieces

Reference Price: USD 0.18828

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ACM-H COMMON MODE FILTERS FOR ULTRA HI

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACM2012H-381-2P-T05.pdf

Request Quotation for ACM2012H-381-2P-T05

Company Name

Contact Person

Phone Number

Address

Email

Message

ACM2012H-381-2P-T05 Specifications

Manufacturer Part Number	ACM2012H-381-2P-T05
Future Part Number	FT-ACM2012H-381-2P-T05
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ACM-H
ACM2012H-381-2P-T05 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	380 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	300mA
DC Resistance (DCR) (Max)	500 mOhm
Voltage Rating - DC	20V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)	0.051" (1.30mm)
Package / Case	Horizontal, 4 PC Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACM2012H-381-2P-T05 Weight	Contact Us
Replacement Part Number	ACM2012H-381-2P-T05-FT
