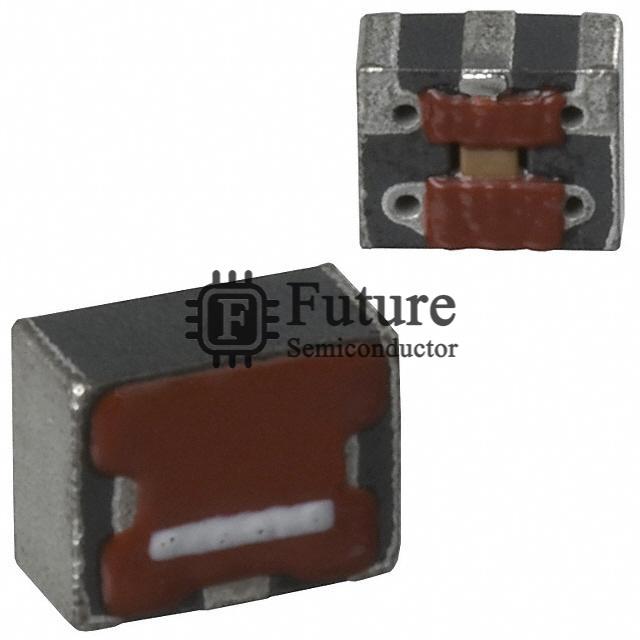

TDK Corporation ACF321825-223-TD01

Name: ACF321825-223-TD01
Brand: TDK Corporation
SKU: ACF321825-223-TD01
Availability: InStock
Rating: 4.6 (554 reviews)

MFG Part Number: ACF321825-223-TD01

Available Quantity: 71580 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ACF FILTER LCT SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: EMI/RFI Filters (LC, RC Networks)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACF321825-223-TD01.pdf

Request Quotation for ACF321825-223-TD01

Company Name

Contact Person

Phone Number

Address

Email

Message

ACF321825-223-TD01 Specifications

Manufacturer Part Number	ACF321825-223-TD01
Future Part Number	FT-ACF321825-223-TD01
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ACF
ACF321825-223-TD01 Status (Lifecycle)	In Stock
Part Status	Not For New Designs
Type	Low Pass
Filter Order	3rd
Technology	LC (T-Type)
Number of Channels	1
Center / Cutoff Frequency	-
Attenuation Value	25dB @ 11MHz ~ 55MHz
Resistance - Channel (Ohms)	0.15
Current	300mA
Values	-
ESD Protection	No
Operating Temperature	-25°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage - Rated	20V
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric), 3 PC Pad
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height	0.079" (2.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACF321825-223-TD01 Weight	Contact Us
Replacement Part Number	ACF321825-223-TD01-FT
