Home / Products / Switches / Snap Action, Limit Switches / ABS1512503

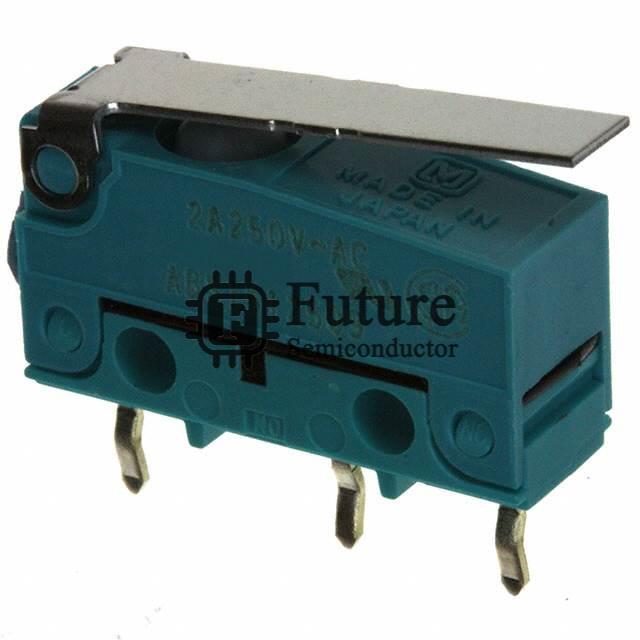

ABS1512503 Image

Panasonic Electric Works ABS1512503

MFG Part Number
ABS1512503
Available Quantity
42070 Pieces
Reference Price
USD 2.12
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Panasonic Electric Works
Brief Description
ABS SWITCH SNAP ACTION SPDT 2A 125V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Snap Action, Limit Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
ABS1512503.pdf
ABS1512503 Image

Request Quotation for ABS1512503

Company Name
Contact Person
Phone Number
Address
Email
Message

ABS1512503 Specifications

Manufacturer Part Number ABS1512503
Future Part Number FT-ABS1512503
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series ABS
ABS1512503 Status (Lifecycle) In Stock
Part Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 2A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP50 - Dust Protected
Features -
Operating Force 55gf
Release Force 3.500gf
Pretravel 0.110" (2.8mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Operating Temperature -40°C ~ 85°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
ABS1512503 Weight Contact Us
Replacement Part Number ABS1512503-FT
