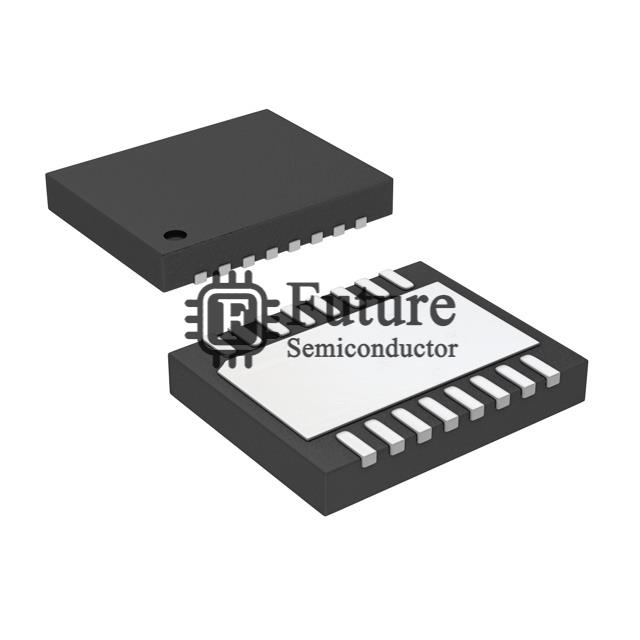

Skyworks Solutions Inc. AAT2522IRN-1-T1

Name: AAT2522IRN-1-T1
Brand: Skyworks Solutions Inc.
SKU: AAT2522IRN-1-T1
Availability: InStock
Rating: 4.8 (495 reviews)

MFG Part Number: AAT2522IRN-1-T1

Available Quantity: 53090 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Skyworks Solutions Inc.

Brief Description: SwitchReg™ IC REG BUCK ADJ 3A DL SYNC 16DFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Voltage Regulators - DC DC Switching Regulators

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AAT2522IRN-1-T1.pdf

Request Quotation for AAT2522IRN-1-T1

Company Name

Contact Person

Phone Number

Address

Email

Message

AAT2522IRN-1-T1 Specifications

Manufacturer Part Number	AAT2522IRN-1-T1
Future Part Number	FT-AAT2522IRN-1-T1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	SwitchReg™
AAT2522IRN-1-T1 Status (Lifecycle)	In Stock
Part Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	5.5V
Current - Output	3A
Frequency - Switching	1.4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFDFN Exposed Pad
Supplier Device Package	16-TDFN (3x4)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AAT2522IRN-1-T1 Weight	Contact Us
Replacement Part Number	AAT2522IRN-1-T1-FT
