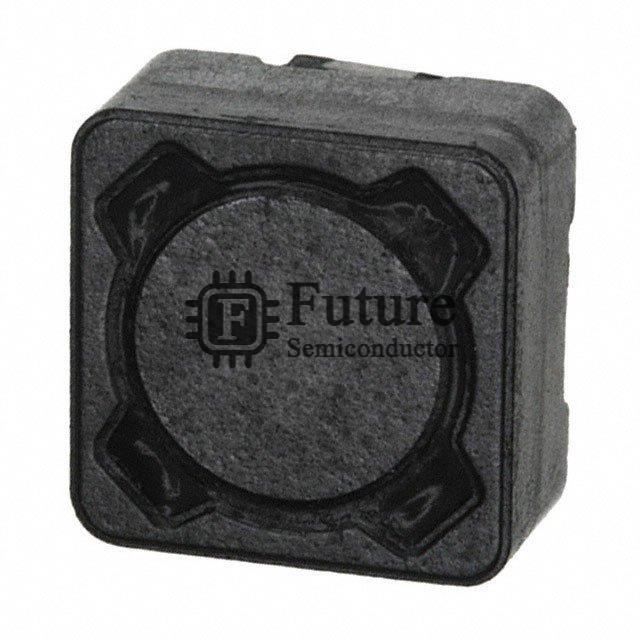

Wurth Electronics Inc. 784770220

Name: 784770220
Brand: Wurth Electronics Inc.
SKU: 784770220
Price: 1.507632 USD
Availability: InStock
Rating: 4.6 (336 reviews)

MFG Part Number: 784770220

Available Quantity: 29540 Pieces

Reference Price: USD 1.507632

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Wurth Electronics Inc.

Brief Description: WE-PDA FIXED Inductors 22UH 4A 44.5 MOHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 784770220.pdf

Request Quotation for 784770220

Company Name

Contact Person

Phone Number

Address

Email

Message

784770220 Specifications

Manufacturer Part Number	784770220
Future Part Number	FT-784770220
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	WE-PDA
784770220 Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Nickel Zinc Ferrite (NiZn)
Inductance	22µH
Tolerance	±20%
Current Rating	4A
Current - Saturation	4.7A
Shielding	Shielded
DC Resistance (DCR)	44.5 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	15.6MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	1280
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.327" (8.30mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
784770220 Weight	Contact Us
Replacement Part Number	784770220-FT
