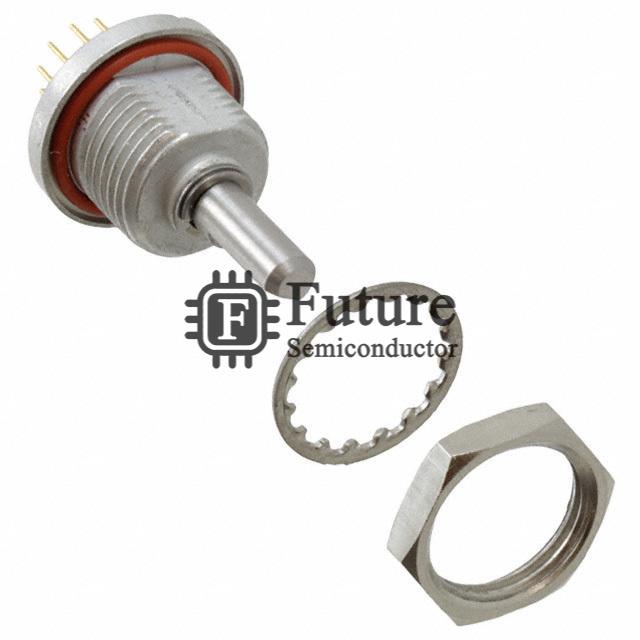

Grayhill Inc. 77SPT36-01-1-07N

Name: 77SPT36-01-1-07N
Brand: Grayhill Inc.
SKU: 77SPT36-01-1-07N
Price: 28.1808 USD
Availability: InStock
Rating: 4.7 (105 reviews)

MFG Part Number: 77SPT36-01-1-07N

Available Quantity: 31520 Pieces

Reference Price: USD 28.1808

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Grayhill Inc.

Brief Description: 77 SWITCH ROTARY 7POS 50MA 115V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 77SPT36-01-1-07N.pdf

Request Quotation for 77SPT36-01-1-07N

Company Name

Contact Person

Phone Number

Address

Email

Message

77SPT36-01-1-07N Specifications

Manufacturer Part Number	77SPT36-01-1-07N
Future Part Number	FT-77SPT36-01-1-07N
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	77
77SPT36-01-1-07N Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	7
Index Stops	Fixed
Number of Decks	1
Number of Poles per Deck	1
Circuit per Deck	SP7T
Contact Timing	Non-Shorting (BBM)
Current Rating	50mA (AC), 200mA (DC)
Voltage Rating - AC	115V
Voltage Rating - DC	28V
Actuator Type	Flatted (3.17mm Dia)
Actuator Length	7.98mm
Angle of Throw	36°
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Finish	Gold
Mounting Type	Panel Mount, Through Hole
Termination Style	PC Pin
Features	Shaft and Panel Sealed
Depth Behind Panel	4.57mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
77SPT36-01-1-07N Weight	Contact Us
Replacement Part Number	77SPT36-01-1-07N-FT
