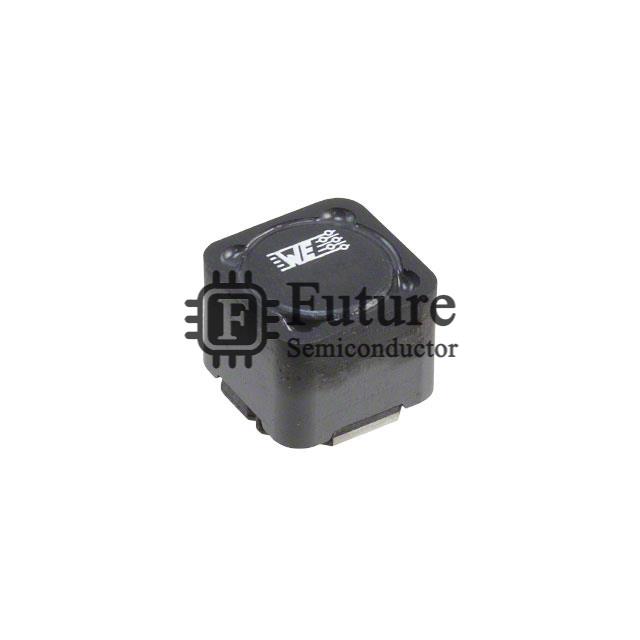

Wurth Electronics Inc. 7687709222

Name: 7687709222
Brand: Wurth Electronics Inc.
SKU: 7687709222
Price: 2.140416 USD
Availability: InStock
Rating: 4.7 (135 reviews)

MFG Part Number: 7687709222

Available Quantity: 99090 Pieces

Reference Price: USD 2.140416

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Wurth Electronics Inc.

Brief Description: WE-PD HV FIXED Inductors 2.2MH 430MA 3.7 OHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 7687709222.pdf

Request Quotation for 7687709222

Company Name

Contact Person

Phone Number

Address

Email

Message

7687709222 Specifications

Manufacturer Part Number	7687709222
Future Part Number	FT-7687709222
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	WE-PD HV
7687709222 Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	2.2mH
Tolerance	±20%
Current Rating	430mA
Current - Saturation	650mA
Shielding	Shielded
DC Resistance (DCR)	3.7 Ohm Max
Q @ Freq	-
Frequency - Self Resonant	800kHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
7687709222 Weight	Contact Us
Replacement Part Number	7687709222-FT
