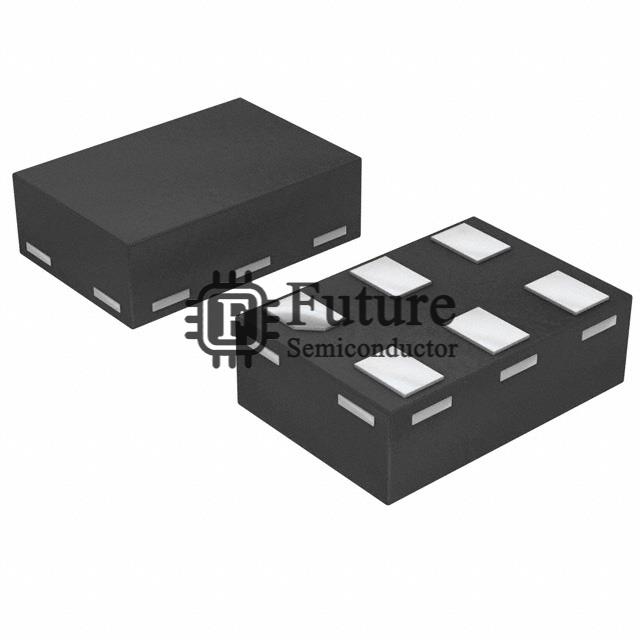

Diodes Incorporated 74LVC1G00FW5-7

Name: 74LVC1G00FW5-7
Brand: Diodes Incorporated
SKU: 74LVC1G00FW5-7
Price: 0.1008 USD
Availability: InStock
Rating: 4.7 (576 reviews)

MFG Part Number: 74LVC1G00FW5-7

Available Quantity: 18600 Pieces

Reference Price: USD 0.1008

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: 74LVC IC GATE NAND 1CH 2-INP DFN1010-6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Logic - Gates and Inverters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 74LVC1G00FW5-7.pdf

Request Quotation for 74LVC1G00FW5-7

Company Name

Contact Person

Phone Number

Address

Email

Message

74LVC1G00FW5-7 Specifications

Manufacturer Part Number	74LVC1G00FW5-7
Future Part Number	FT-74LVC1G00FW5-7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	74LVC
74LVC1G00FW5-7 Status (Lifecycle)	In Stock
Part Status	Active
Logic Type	NAND Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	200µA
Current - Output High, Low	32mA, 32mA
Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	5.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	X1-DFN1010-6
Package / Case	6-XDFN
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
74LVC1G00FW5-7 Weight	Contact Us
Replacement Part Number	74LVC1G00FW5-7-FT
