Home / Products / Integrated Circuits (ICs) / Logic - Gates and Inverters / 74LV1T02GXH

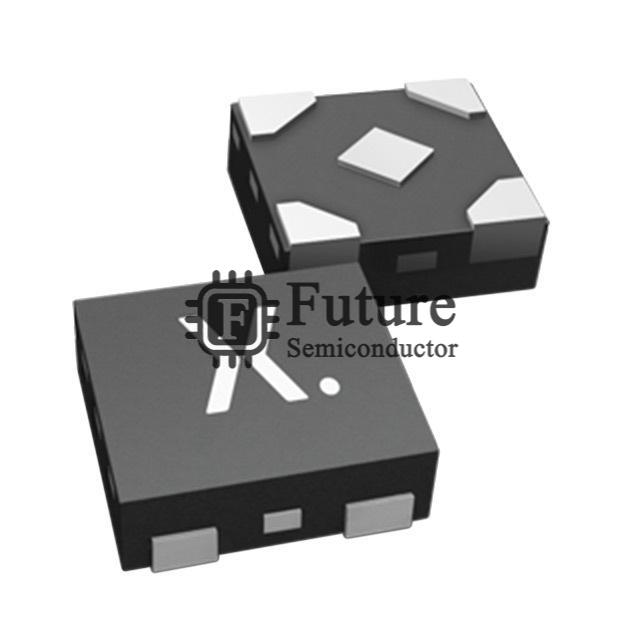

74LV1T02GXH Image

Nexperia USA Inc. 74LV1T02GXH

MFG Part Number
74LV1T02GXH
Available Quantity
15730 Pieces
Reference Price
USD 0.10152
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Nexperia USA Inc.
Brief Description
74LV IC GATE NOR 1CH 2-INP X2SON5
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Logic - Gates and Inverters
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
74LV1T02GXH.pdf
74LV1T02GXH Image

Request Quotation for 74LV1T02GXH

Company Name
Contact Person
Phone Number
Address
Email
Message

74LV1T02GXH Specifications

Manufacturer Part Number 74LV1T02GXH
Future Part Number FT-74LV1T02GXH
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series 74LV
74LV1T02GXH Status (Lifecycle) In Stock
Part Status Active
Logic Type NOR Gate
Number of Circuits 1
Number of Inputs 2
Features -
Voltage - Supply 1.6V ~ 5.5V
Current - Quiescent (Max) 1µA
Current - Output High, Low 8mA, 8mA
Logic Level - Low 0.1V ~ 0.3V
Logic Level - High 1.28V ~ 4.6V
Max Propagation Delay @ V, Max CL 4.7ns @ 5V, 30pF
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 5-X2SON (0.80x0.80)
Package / Case 5-XFDFN Exposed Pad
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
74LV1T02GXH Weight Contact Us
Replacement Part Number 74LV1T02GXH-FT
