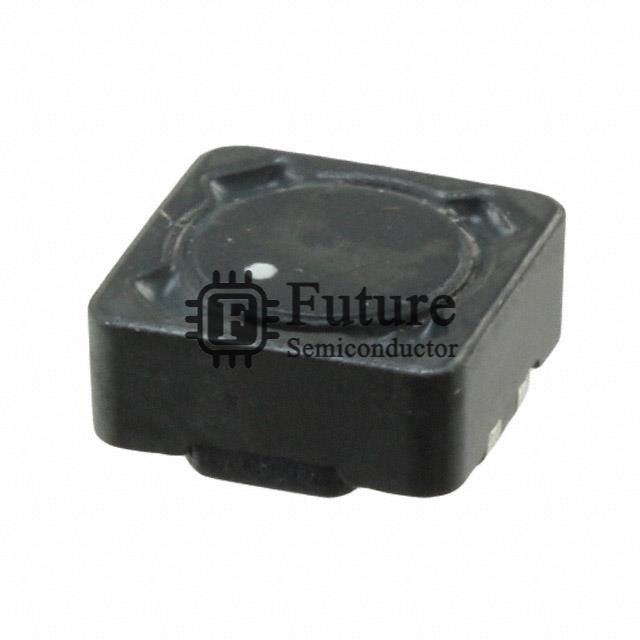

Wurth Electronics Inc. 7447745220

Name: 7447745220
Brand: Wurth Electronics Inc.
SKU: 7447745220
Price: 0.90604 USD
Availability: InStock
Rating: 4.9 (400 reviews)

MFG Part Number: 7447745220

Available Quantity: 88290 Pieces

Reference Price: USD 0.90604

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Wurth Electronics Inc.

Brief Description: WE-PD2 FIXED Inductors 22UH 1.05A 330 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 7447745220.pdf

Request Quotation for 7447745220

Company Name

Contact Person

Phone Number

Address

Email

Message

7447745220 Specifications

Manufacturer Part Number	7447745220
Future Part Number	FT-7447745220
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	WE-PD2
7447745220 Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±20%
Current Rating	1.05A
Current - Saturation	1.2A
Shielding	Unshielded
DC Resistance (DCR)	330 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	24MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.091" (2.30mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
7447745220 Weight	Contact Us
Replacement Part Number	7447745220-FT
