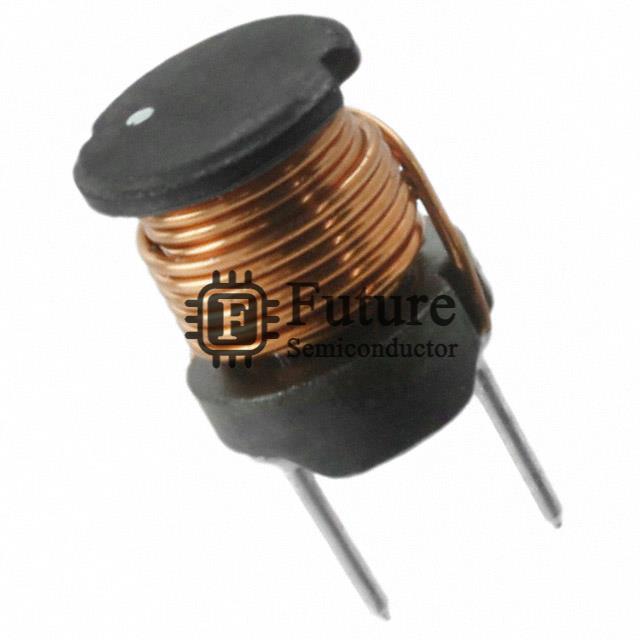

Wurth Electronics Inc. 744772220

Name: 744772220
Brand: Wurth Electronics Inc.
SKU: 744772220
Price: 0.784 USD
Availability: InStock
Rating: 4.9 (801 reviews)

MFG Part Number: 744772220

Available Quantity: 43210 Pieces

Reference Price: USD 0.784

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Wurth Electronics Inc.

Brief Description: WE-TI FIXED Inductors 22UH 2.3A 55 MOHM TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 744772220.pdf

744772220 Specifications

Manufacturer Part Number	744772220
Future Part Number	FT-744772220
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	WE-TI
744772220 Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating	2.3A
Current - Saturation	3.6A
Shielding	Unshielded
DC Resistance (DCR)	55 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	12.4MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.394" (10.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
744772220 Weight	Contact Us
Replacement Part Number	744772220-FT
