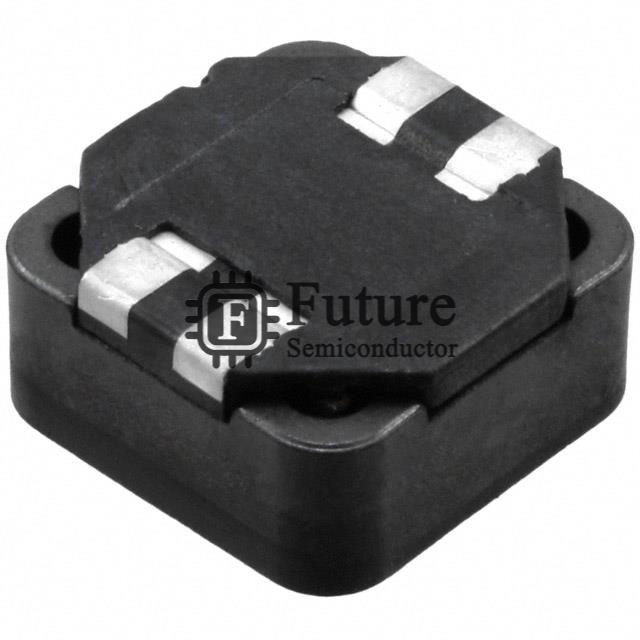

Wurth Electronics Inc. 744282100
- MFG Part Number
- 744282100
- Available Quantity
- 39400 Pieces
- Reference Price
- USD 1.8456
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Wurth Electronics Inc.
- Brief Description
- WE-SCC CMC 10UH 2.25A 2LN 9 KOHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Common Mode Chokes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- 744282100.pdf
744282100 Specifications
| Manufacturer Part Number | 744282100 |
|---|---|
| Future Part Number | FT-744282100 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | WE-SCC |
| 744282100 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Filter Type | Power, Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 9 kOhms @ 20MHz |
| Inductance @ Frequency | 10µH @ 100kHz |
| Current Rating (Max) | 2.25A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approvals | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height (Max) | 0.256" (6.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| 744282100 Weight | Contact Us |
| Replacement Part Number | 744282100-FT |
