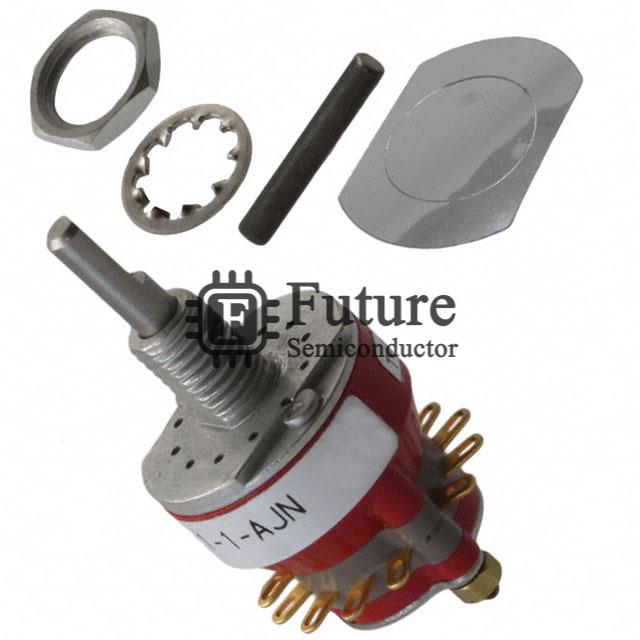

Grayhill Inc. 71AD30-01-1-AJN

Name: 71AD30-01-1-AJN
Brand: Grayhill Inc.
SKU: 71AD30-01-1-AJN
Price: 15.392 USD
Availability: InStock
Rating: 4.6 (737 reviews)

MFG Part Number: 71AD30-01-1-AJN

Available Quantity: 63530 Pieces

Reference Price: USD 15.392

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Grayhill Inc.

Brief Description: 71 SWITCH ROTARY 2-12POS 250MA 115V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 71AD30-01-1-AJN.pdf

Request Quotation for 71AD30-01-1-AJN

Company Name

Contact Person

Phone Number

Address

Email

Message

71AD30-01-1-AJN Specifications

Manufacturer Part Number	71AD30-01-1-AJN
Future Part Number	FT-71AD30-01-1-AJN
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	71
71AD30-01-1-AJN Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	2 ~ 12
Index Stops	Adjustable
Number of Decks	1
Number of Poles per Deck	1
Circuit per Deck	SP12T
Contact Timing	Non-Shorting (BBM)
Current Rating	250mA (AC/DC)
Voltage Rating - AC	115V
Voltage Rating - DC	30V
Actuator Type	Flatted (3.17mm Dia)
Actuator Length	9.53mm
Angle of Throw	30°
Contact Material	Silver Alloy
Contact Finish	-
Mounting Type	Panel Mount
Termination Style	Solder Lug
Features	-
Depth Behind Panel	19.33mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
71AD30-01-1-AJN Weight	Contact Us
Replacement Part Number	71AD30-01-1-AJN-FT
