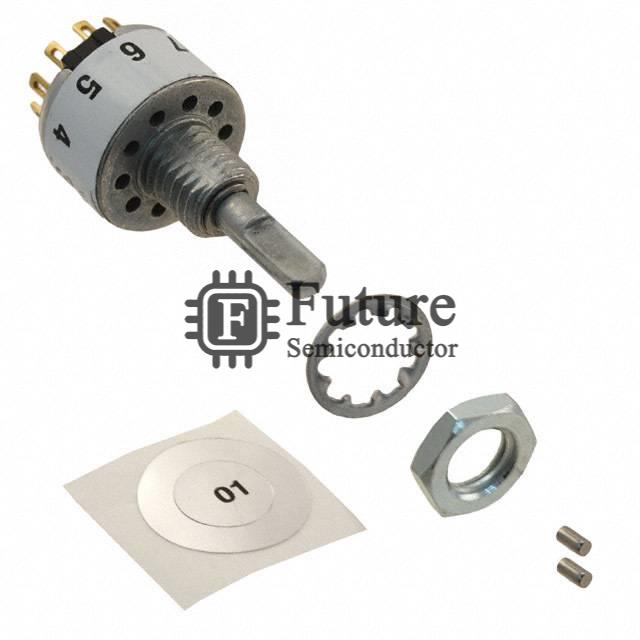

Grayhill Inc. 56D36-01-2-AJN

Name: 56D36-01-2-AJN
Brand: Grayhill Inc.
SKU: 56D36-01-2-AJN
Price: 9.08 USD
Availability: InStock
Rating: 5.0 (488 reviews)

MFG Part Number: 56D36-01-2-AJN

Available Quantity: 69190 Pieces

Reference Price: USD 9.08

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Grayhill Inc.

Brief Description: 56 SWITCH ROTARY 2-5POS 200MA 115V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 56D36-01-2-AJN.pdf

Request Quotation for 56D36-01-2-AJN

Company Name

Contact Person

Phone Number

Address

Email

Message

56D36-01-2-AJN Specifications

Manufacturer Part Number	56D36-01-2-AJN
Future Part Number	FT-56D36-01-2-AJN
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	56
56D36-01-2-AJN Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	2 ~ 5
Index Stops	Adjustable
Number of Decks	1
Number of Poles per Deck	2
Circuit per Deck	DP5T
Contact Timing	Non-Shorting (BBM)
Current Rating	200mA (AC/DC)
Voltage Rating - AC	115V
Voltage Rating - DC	30V
Actuator Type	Flatted (3.17mm Dia)
Actuator Length	9.53mm
Angle of Throw	36°
Contact Material	Brass
Contact Finish	Silver
Mounting Type	Panel Mount
Termination Style	Solder Lug
Features	-
Depth Behind Panel	12.19mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
56D36-01-2-AJN Weight	Contact Us
Replacement Part Number	56D36-01-2-AJN-FT
