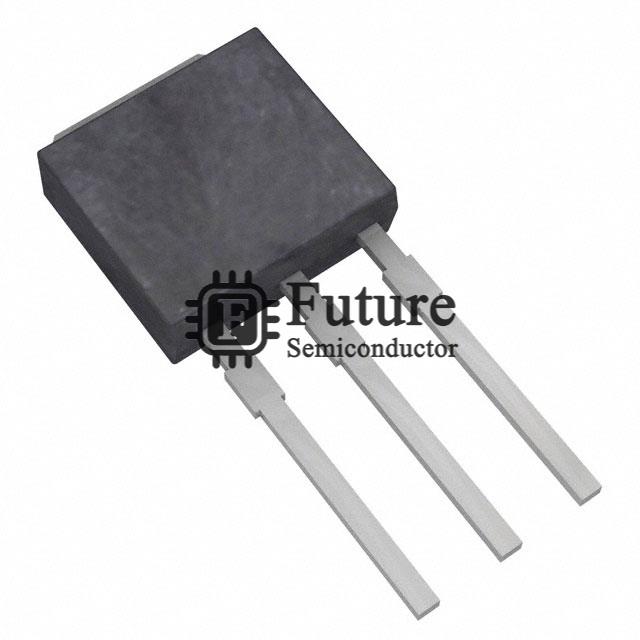

Renesas Electronics America 2SK3813-AZ

Name: 2SK3813-AZ
Brand: Renesas Electronics America
SKU: 2SK3813-AZ
Availability: InStock
Rating: 4.7 (722 reviews)

MFG Part Number: 2SK3813-AZ

Available Quantity: 69330 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Renesas Electronics America

Brief Description: - MOSFET N-CH 40V MP-3/TO-251

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 2SK3813-AZ.pdf

Request Quotation for 2SK3813-AZ

Company Name

Contact Person

Phone Number

Address

Email

Message

2SK3813-AZ Specifications

Manufacturer Part Number	2SK3813-AZ
Future Part Number	FT-2SK3813-AZ
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
2SK3813-AZ Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.3 mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	96nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5500pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 84W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (MP-3)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
2SK3813-AZ Weight	Contact Us
Replacement Part Number	2SK3813-AZ-FT
