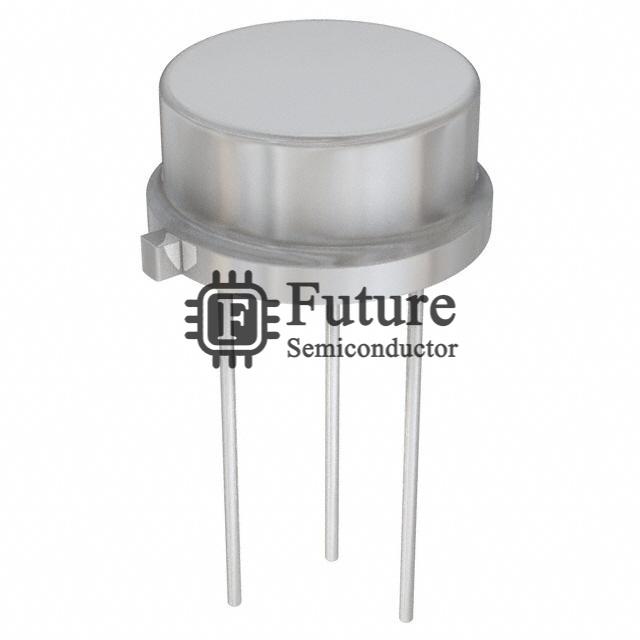

Microsemi Corporation 2N6784

Name: 2N6784
Brand: Microsemi Corporation
SKU: 2N6784
Availability: InStock
Rating: 4.6 (132 reviews)

MFG Part Number: 2N6784

Available Quantity: 89510 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: - MOSFET N-CH 200V TO-205AF

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 2N6784.pdf

Request Quotation for 2N6784

Company Name

Contact Person

Phone Number

Address

Email

Message

2N6784 Specifications

Manufacturer Part Number	2N6784
Future Part Number	FT-2N6784
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
2N6784 Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	2.25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.5 Ohm @ 1.5A, 0V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	800mW (Ta), 15W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-39
Package / Case	TO-205AF Metal Can
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
2N6784 Weight	Contact Us
Replacement Part Number	2N6784-FT
