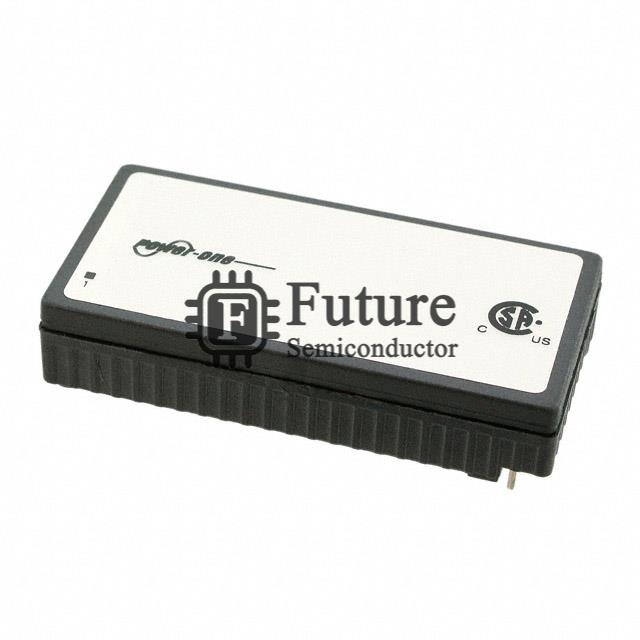

Bel Power Solutions 20IMX7-24-24-8G
- MFG Part Number
- 20IMX7-24-24-8G
- Available Quantity
- 75340 Pieces
- Reference Price
- USD 61.968
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Bel Power Solutions
- Brief Description
- Melcher IMX7 (7W) DC DC CONVERTER 24V 24V 7W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- 20IMX7-24-24-8G.pdf
20IMX7-24-24-8G Specifications
| Manufacturer Part Number | 20IMX7-24-24-8G |
|---|---|
| Future Part Number | FT-20IMX7-24-24-8G |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Melcher IMX7 (7W) |
| 20IMX7-24-24-8G Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 8.4V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 130mA, 130mA |
| Power (Watts) | 7W |
| Voltage - Isolation | 1.2kV |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| 20IMX7-24-24-8G Weight | Contact Us |
| Replacement Part Number | 20IMX7-24-24-8G-FT |
