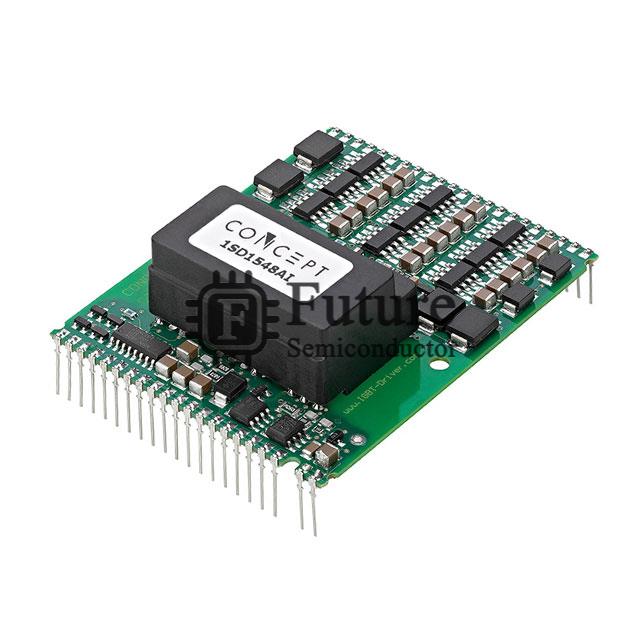

Power Integrations 1SD1548AI UL

Name: 1SD1548AI UL
Brand: Power Integrations
SKU: 1SD1548AI UL
Price: 130.445336 USD
Availability: InStock
Rating: 4.6 (70 reviews)

MFG Part Number: 1SD1548AI UL

Available Quantity: 11410 Pieces

Reference Price: USD 130.445336

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Power Integrations

Brief Description: SCALE™-1 GATE DVR CORE 1700V 44PIN UL

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Gate Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 1SD1548AI UL.pdf

Request Quotation for 1SD1548AI UL

Company Name

Contact Person

Phone Number

Address

Email

Message

1SD1548AI UL Specifications

Manufacturer Part Number	1SD1548AI UL
Future Part Number	FT-1SD1548AI UL
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	SCALE™-1
1SD1548AI UL Status (Lifecycle)	In Stock
Part Status	Active
Driven Configuration	Half-Bridge
Channel Type	-
Number of Drivers	1
Gate Type	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply	15V
Logic Voltage - VIL, VIH	-
Current - Peak Output (Source, Sink)	48A, 48A
Input Type	-
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	Module
Supplier Device Package	Module
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
1SD1548AI UL Weight	Contact Us
Replacement Part Number	1SD1548AI UL-FT
