Home / Products / Isolators / Isolators - Gate Drivers / 1EDF5673FXUMA1

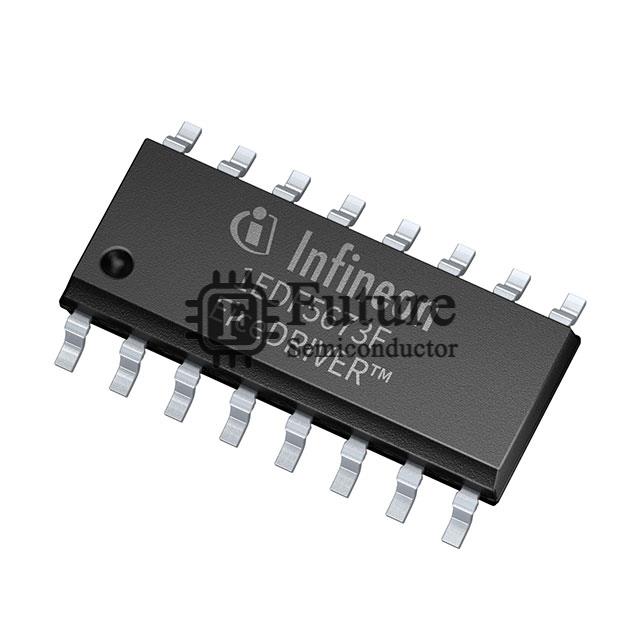

Infineon Technologies 1EDF5673FXUMA1
- MFG Part Number
- 1EDF5673FXUMA1
- Available Quantity
- 60940 Pieces
- Reference Price
- USD 1.472464
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Infineon Technologies
- Brief Description
- EiceDriver™ IC DRIVER IC GAN DSO-16-11
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Isolators - Gate Drivers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- 1EDF5673FXUMA1.pdf
1EDF5673FXUMA1 Specifications
| Manufacturer Part Number | 1EDF5673FXUMA1 |
|---|---|
| Future Part Number | FT-1EDF5673FXUMA1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | EiceDriver™ |
| 1EDF5673FXUMA1 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1500VDC |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 44ns, 44ns |
| Pulse Width Distortion (Max) | 18ns (Typ) |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Current - Output High, Low | 4A, 8A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Supply | 3.13V ~ 3.47V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-16-11 |
| Approvals | CQC, CSA, UL, VDE |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| 1EDF5673FXUMA1 Weight | Contact Us |
| Replacement Part Number | 1EDF5673FXUMA1-FT |
