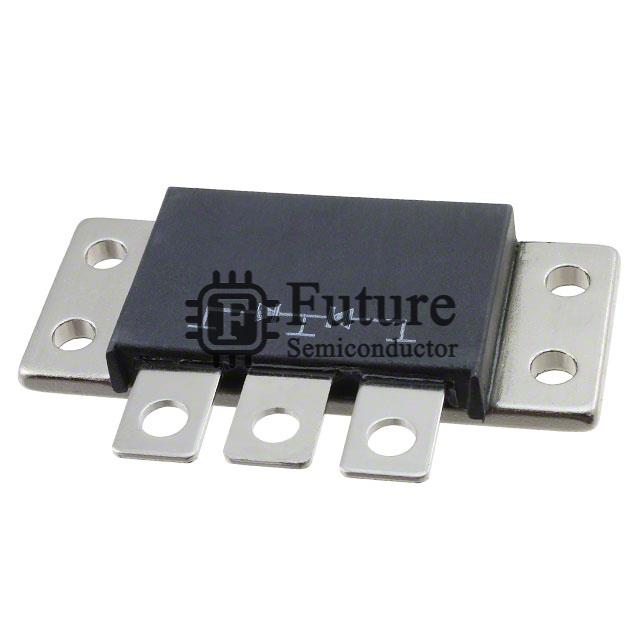

SMC Diode Solutions 169CMQ135

Name: 169CMQ135
Brand: SMC Diode Solutions
SKU: 169CMQ135
Price: 18.772 USD
Availability: InStock
Rating: 4.6 (308 reviews)

MFG Part Number: 169CMQ135

Available Quantity: 15130 Pieces

Reference Price: USD 18.772

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: SMC Diode Solutions

Brief Description: - DIODE SCHOTTKY 135V 80A TO249AA

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 169CMQ135.pdf

169CMQ135 Specifications

Manufacturer Part Number	169CMQ135
Future Part Number	FT-169CMQ135
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
169CMQ135 Status (Lifecycle)	In Stock
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	135V
Current - Average Rectified (Io) (per Diode)	80A
Voltage - Forward (Vf) (Max) @ If	850mV @ 80A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	1.5mA @ 135V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	TO-249AA
Supplier Device Package	TO-249AA
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
169CMQ135 Weight	Contact Us
Replacement Part Number	169CMQ135-FT
