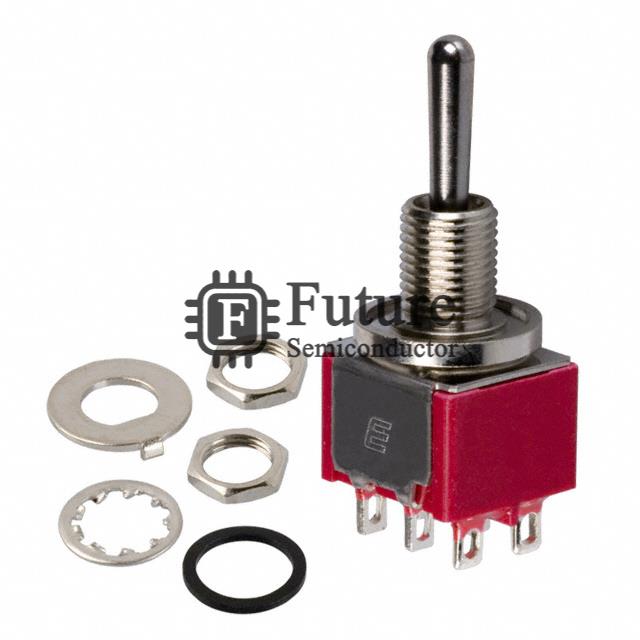

E-Switch 100DP3T1B9M1QEH

Name: 100DP3T1B9M1QEH
Brand: E-Switch
SKU: 100DP3T1B9M1QEH
Price: 2.5382 USD
Availability: InStock
Rating: 4.7 (149 reviews)

MFG Part Number: 100DP3T1B9M1QEH

Available Quantity: 98660 Pieces

Reference Price: USD 2.5382

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: E-Switch

Brief Description: 100 SWITCH TOGGLE DPDT 5A 120V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Toggle Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 100DP3T1B9M1QEH.pdf

100DP3T1B9M1QEH Specifications

Manufacturer Part Number	100DP3T1B9M1QEH
Future Part Number	FT-100DP3T1B9M1QEH
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	100
100DP3T1B9M1QEH Status (Lifecycle)	In Stock
Part Status	Active
Circuit	DPDT
Switch Function	On-Off-On
Current Rating	5A (AC/DC)
Voltage Rating - AC	120V
Voltage Rating - DC	28V
Actuator Type	Standard Round
Actuator Length	10.41mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular - 6.35mm Dia
Bushing Thread	1/4-40
Ingress Protection	-
Features	Epoxy Sealed Terminals
Operating Temperature	-30°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
100DP3T1B9M1QEH Weight	Contact Us
Replacement Part Number	100DP3T1B9M1QEH-FT
