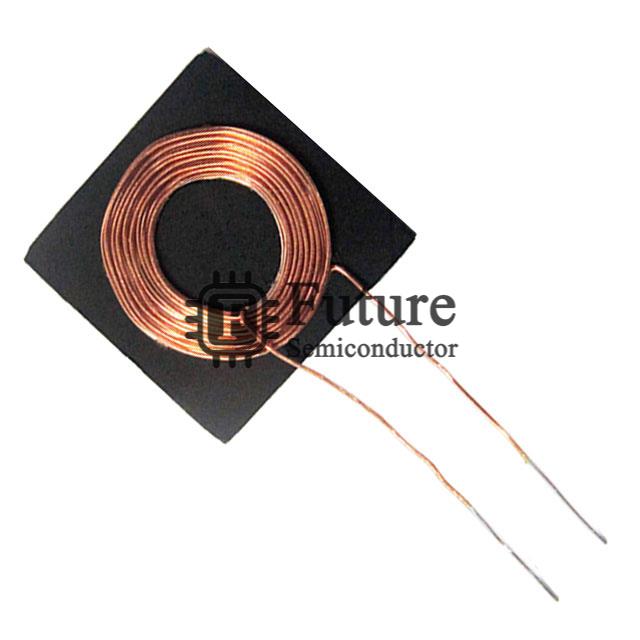

Abracon LLC AWCCA-12R12H11-C01-B

Name: AWCCA-12R12H11-C01-B
Brand: Abracon LLC
SKU: AWCCA-12R12H11-C01-B
Price: 3.056 USD
Availability: InStock
Rating: 4.6 (380 reviews)

MFG Part Number: AWCCA-12R12H11-C01-B

Available Quantity: 11590 Pieces

Reference Price: USD 3.056

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Abracon LLC

Brief Description: AWCCA RX 1 COIL 1 LAYER 8UH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Wireless Charging Coils

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AWCCA-12R12H11-C01-B.pdf

AWCCA-12R12H11-C01-B Specifications

Manufacturer Part Number	AWCCA-12R12H11-C01-B
Future Part Number	FT-AWCCA-12R12H11-C01-B
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	AWCCA
AWCCA-12R12H11-C01-B Status (Lifecycle)	In Stock
Part Status	Active
Function	Receiver
Type	1 Coil, 1 Layer
Inductance	8µH
Tolerance	±10%
DC Resistance (DCR)	520 mOhm
Q @ Freq	10 @ 100kHz
Current Rating	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-25°C ~ 85°C
Size / Dimension	0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AWCCA-12R12H11-C01-B Weight	Contact Us
Replacement Part Number	AWCCA-12R12H11-C01-B-FT
